Electric field intensity due to uniform infinite line charge.

-
In this video, the Electric field intensity due to uniform infinite line charge directed along entire Z-axis is derived. It is generalized for any orientation and few examples are also discussed. Notes are attached below.








Comments

Post a Comment

Popular posts from this blog

Design equations of Rectangular Microstrip Patch Antenna

-

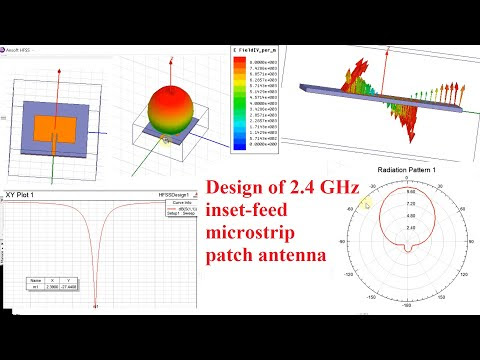

Following design equation can be used to calculate the width and length of rectangular microstrip patch antenna and simulation of 2.4 GHz inset-feed rectangular patch antenna can be found in follwing video.  Microstrip antenna with inset-feed line                           Part-1 Design step for the calculation of W and L Step-1 : To calcualte width 'W' use follwing formula Step-2:   Calculate the effective dielectric constant using formula below. Here    ' ε r '  is relative  dielectric constant of the material. 'h' is height of the substrate and W is the width of patch calculated in first step. Step-3:   Calculate ΔL using formula below. Step-4:   Calculate length of the patch using formula below. v 0    is speed of light in free space. Part-2 Feedline calculation Step-1:   Calculate the input impdedance of the patch using follwing formula. (Typically between 200  Ω  to 250  Ω. You can assume 225  Ω for simplic
Read more

Spotters in "Hospital Waste Management" for CFM & MPH students

-
 As per “Bio-medical Waste Management Rules, 2016”  1. Yellow Bin/ Bag: Type of Bag/  Container used:  Non-chlorinated  plastic bags Type of Waste:  1. Human Anatomical Waste A. Tissues, organs, body parts B. Foetus, Umbilical stump, placenta 2. Animal Anatomical Waste:  Tissues, Organs, body parts 3. Soiled Waste:  items contaminated with blood and body fluids A. Dressings, sponges, gauze B. Plaster casts C. Cotton swabs D. Blood bags E. Infected gowns, mask, shoe covers, cap 4.  Expired or Discarded  Medicines:   including antibiotics (except cytotoxic) 5. Chemical Waste: A. Discarded disinfectants, Cleaning agents B. X-ray film developing liquid, Infected secretions C. Aspirated body fluids, Liquid from laboratories 6. Microbiology, Biotechnology, and other clinical  lab waste 7. Chemical Liquid Waste Yellow bin/ bag with the cytotoxic label: 1. Used, discarded, and expired cytotoxic drugs whether in plastic vaccutainers, syringes, glass  vials, ampoules, glass bottles. The containe
Read more

Spotters in "Environment and Health: Mosquito control Measures" for CFM & MPH students

-
The integrated approach of mosquito control: This is an approach that avoids the excessive use of any one method (e.g insecticides) but tries to combine one or more methods with a view to obtain maximum results with minimum inputs and also to prevent environmental pollution with toxic chemicals & development of insecticide resistance. The various methods of mosquito control are as follows: 1. Anti- Larval Measures: (a) Environmental Control: Important Points: Source reduction : Mainly the elimination of mosquito breeding places by minor engineering methods such as  Filling- of cesspools & open ditches and arrangement for adequate collection, removal, and disposal of sewage & wastewater. Leveling & getting rid of water-holding containers such as discarded tins, empty pots, broken bottles, coconut shells, etc. Drainage of breeding places, and  Water management (e.g intermittent irrigation) & removal of aquatic plants or destruction by herbicides. Rendering the water u
Read more

Spotters in "Environment and Health: Water" for CFM & MPH students

-
  1. Sanitary well: Important points: Location: Not less than 15 m (50 feet) from likely sources of contamination & at a higher elevation. Not more than 100 m from houses Lining: Should be made up of bricks/ stones & cement up to a depth of at least 6 m (20 feet) and 60-90 cm (2-3 feet) above the ground Parapet wall: up to a height of 70-75 cm (28 inches) above the ground Platform: Extending at least 1m (3 feet) in all directions with a gentle slope towards the drain. Drain: pucca drain around the well to carry off spilled water to a public drain or soakage pit. Covering: Top closed by a cement cover. Hand pump: If possible it should be equipped with a hand pump in a Sanitary manner. 2. Slow sand filter: Important points: Space: Occupies a large area Rate of filtration: 2-3 m.g.a.d The effective size of sand: 0.2-0.3 mm Preliminary treatment:  Plane sedimentation. Washing: By scraping the sand bed Operation:  Less skilled Loss of head allowed:  4 feet (1.5 m) Removal
Read more

How to design a reconfigurable antenna? Step-by-step process.

-
Determine the frequency range and bandwidth requirements for the antenna. Choose an appropriate antenna structure, such as a patch antenna, microstrip antenna, or planar inverted-F antenna (PIFA). Choose the reconfigurable component, such as PIN diodes, switches, or varactor diodes. Design the impedance matching network, which is essential for optimal performance of the antenna. Simulate the antenna using electromagnetic simulation software, such as CST Microwave Studio, Ansys HFSS, or Keysight ADS, to verify its performance. Fabricate the antenna and integrate the reconfigurable component. Test the antenna in an anechoic chamber to verify its performance and ensure that it meets the requirements. Repeat steps 5-7 as necessary to optimize the antenna's performance. Note: These are general steps for designing a reconfigurable antenna and may vary depending on the specific requirements and constraints of the application.
